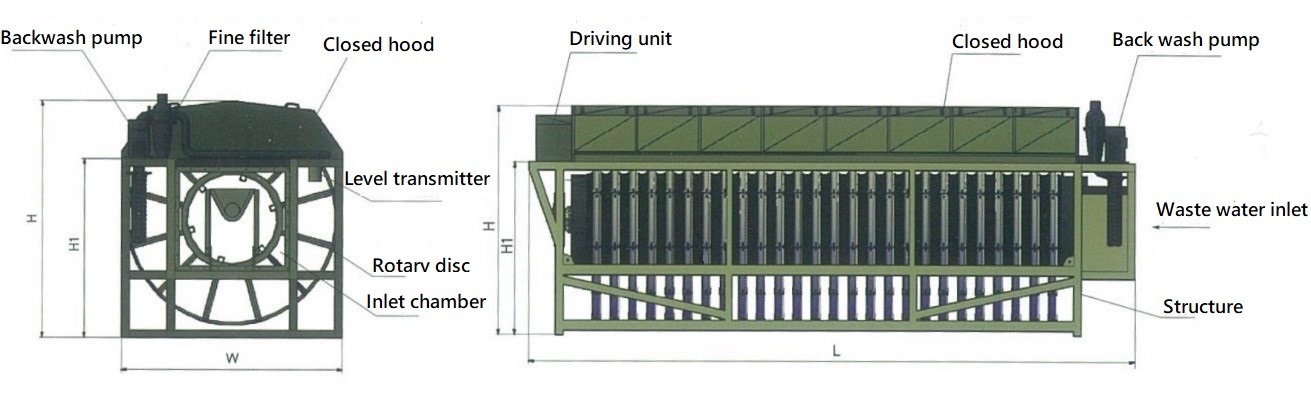

Rotary Disc Type Filter

Rotary disc microfilter is mainly used for the deep treatment of wastewater, such as the upgrading of the sewage plant (which can make the water SS≤10mg / L), power plant, steel cooling water recycling, paper, printing and dyeing and other industrial water treatment.

• The effluent quality is stable.

• Small footprint. Rotary disc type micro filter filter disc is installed vertically; so as to achieve a small footprint but a large filtering area.

• Run fully automated control. All automatic control operations such as filtering and backwashing. And is equipped with multiple protections, no need for special personnel to operate in daily operation.

• Continuous operation, low idle rate. It can work continuously for 24 hours, no need to stop and back flush, while back flushing, it can still run continuously.

• The head loss is small, and the front and back loss of the filter cloth is less than 300 mm. The total head loss is 800~1000 mm. It is much lower than gravity sand filter and pressure filter.

• Low operation and maintenance costs.

• Low water consumption rate. About 1-3%.

Filtration accuracy: 5~100 µm (customizable)

Filter disc diameter: Ø2200mm

Filter cloth material: 316Ti

Effluent suspended matter: ≤ 10mg/L

Processing capacity: ≥ 1,000m³/d (each disc)

Backwash pressure: 0.6~1MPa
